Details

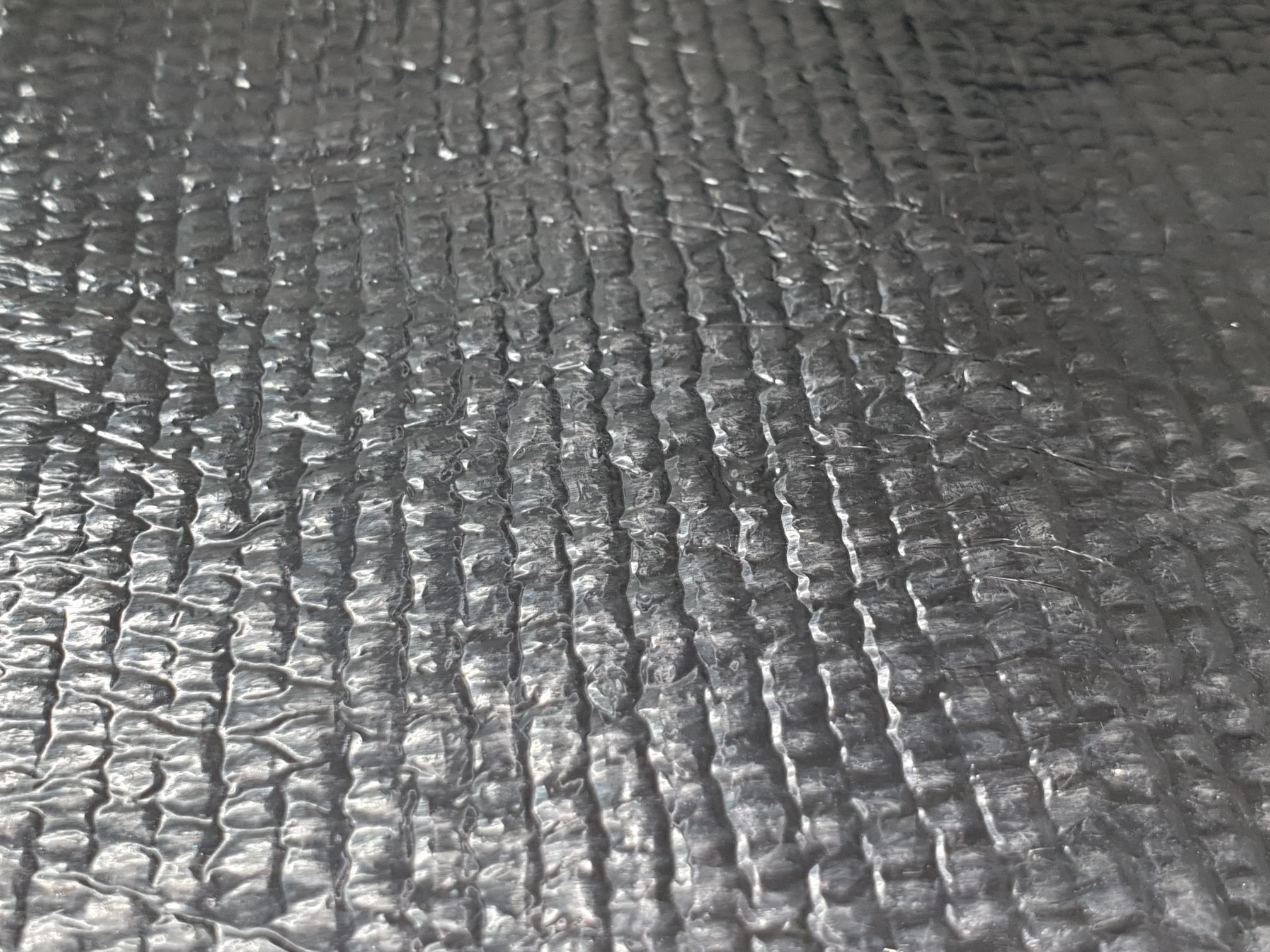

Aluminised texturised glass fabric
Features
- Resistant to temperature up to 550°C
- Good insulative properties
- High tensile strength
- Flameproof
- Sound absorbing
- Non-melting
- Chemical resistance
- Low thermal conductivity
Coating Features
- High heat reflection
|
Property |
Unit |
Value |
||
|
Cloth Type |
|
Fibreglass |
||
|
Cloth Weight |
g/m2 |
1020 ± 10 |
||
|
Weave |
|
Plain |
||
|
Yarn Tex |
Warp |
|
EC 9 1000tex |
|
|
Weft |
EC 9 1000tex |
|||
|
Thread Count |
Warp |
Threads/cm |
6 ± 1 |
|
|
Weft |
3.8 ± 1 |
|||
|
Width |
cm |
100 |
||
|
Aluminum Foil Thickness |
µ |
18 |
||
|
Total Thickness |
mm |
0.65 ± 0.1mm |
||
|
Tensile Strength |
Warp |
N/50mm |
4100 |
|
|
Weft |
1700 |
|||
|
Temp. Resistance |
|
-300°C |
||
|
300°C |
||||
-
