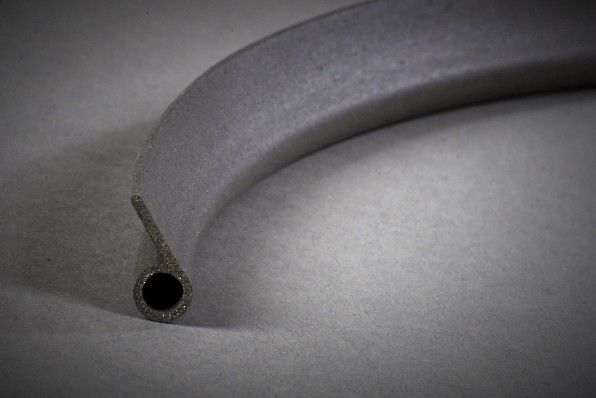

ECP 871/IJ/3 Hollow P Section Nickel Graphite Silicone Extruded Gasket

ECP 871/IJ/3 is a nickel graphite silicone gasket used for emi shielding of electronic products.

• Shielding effectiveness (dB) 200 KHz (H Field) 0.100 - 0.500 = 70 (MIL-G-83528
• Shielding effectiveness (dB) 100 MHz (E Field) 0.100 - 0.500 = 95 (MIL 285)
• Shielding effectiveness (dB) 500 MHz (E Field) 0.100 - 0.500 = 90
• Shielding effectiveness (dB) 2 GHz (Plane Wave) 0.100 - 0.500 = 90
• Shielding effectiveness (dB) 10Ghz (Plain Wave) 0.100 - 0.500 = 90
• Specific Gravity (g/cm cubed) +/-5% 0.100 - 0.500 = 1.99 (ASTM D-792)
• Hardness (Shore A) +/-5% 0.100 - 0.500 = 60 (ASTM D-2240)
• Tensile Strength (MPa) Min. 0.100 - 0.500 = 1.00 (ASTM D-412)
• Elongation (%) Min. 0.100 - 0.500 = 100 (ASTM D-412)
• Compression Set (%) Max. 0.100 - 0.500 = 30 (ASTM D-395)
• Upper Operating Temperature (degrees C) 0.100 - 0.500 = 160
• Lower Operating Temperature (degrees C) 0.100 - 0.500 = -50

Standard Extruded Profiles

• 060 - 5.08mm external dia circular section, 2.03mm internal dia, 1.57mm thick, 12.70mm width
• 061 - 5.08mm external dia ciruclar section, 2.03mm internal dia, 1.57mm thick, 21.59mm width
• 062 - 6.35mm external dia circular section, 3.18mm internal dia, 1.57mm thick, 12.70mm width
• 063 - 6.35mm external dia circular section, 3.18mm internal dia, 1.57mm thick, 15.88mm width
• 064 - 6.35mm external dia circular section, 3.18mm internal dia, 1.57mm thick, 22.22mm width
• 065 - 7.92mm external dia circular section, 4.75mm internal dia, 1.57mm thick, 22.22mm width
• 066 - 9.14mm external dia circular section, 6.48mm internal dia, 1.79mm thick, 19.81mm width

Contact TBA Protective Solutions on 44 (0)1706 647718 to talk to an EMI shielding gaskets expert.
